GF type floater equipment is a mechanical mixing floater with the function of self-suction of air and slurry, which is suitable for small and medium-sized enterprises in selecting non-ferrous, dark and precious metals and non-metal minerals. Particle scope processed by this machine is <0.074mm, taking up 45%-90%. The ore slurry concentration is <45%.
GF Type Flotation Equipment Features
1. Self—suction of air-the amount of self-suction of air could achieve 1.2m^3m/m^2 .min.
2. Self-suction of slurry-ability of self-suction of mineral and medium foam mine out, and the flotation operation could have a horizontal configuration.
3. A fine slurry cycle and stable liquid level-no rotation of slurry in the tank and no turning phenomenon.
4. High separation efficiency-improving the recovery rate of coarse and fine grained mineral.
5. Low power-it saves energy consumption of 15-20% compared with similar floaters of the same specification and inhales enough air and slurry
6. The long life service of vulnerable components - the life of impeller and stator, especially, doubles the floaters of similar types.

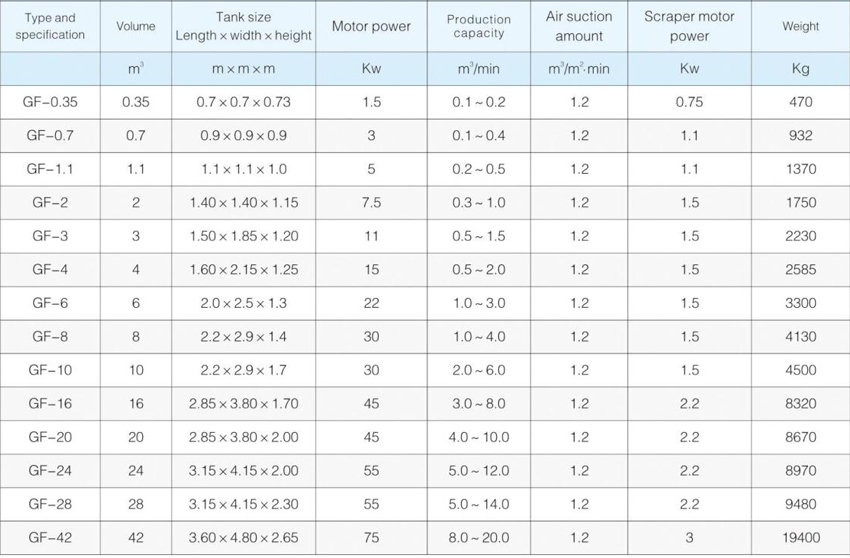

Main Technical Parameters
